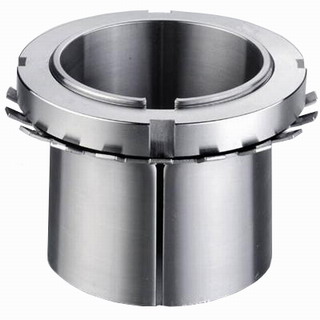

Product Name:  Adapter Sleeves

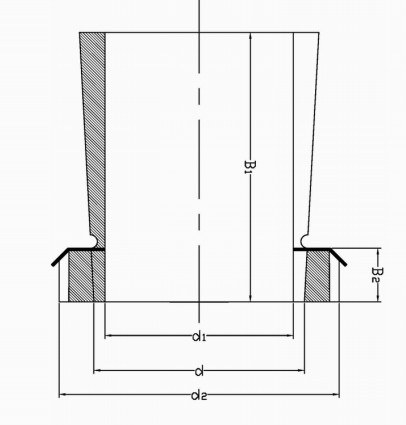

            Unit No                  Dimensions Weight(Kg)
H HE HS HA d1 B1 mm B2 mm d1 mm d2 mm
H mm HE in HS in HA in
H204 - HS204 - 17 - 5/8 - 24 7 20 32 0.04
H205 HE205 - - 20 3/4 - - 26 8 25 38 0.07
H206 HE206 HS206 HA206 25 1 7/8 15/16 27 8 30 45 0.10
H207 HE207 HS207 HA207 30 1 1/4 1 1/8 1 3/16 29 9 35 52 0.13
H208 HE208 HS208 - 35 1 1/4 1 3/8 - 31 10 40 58 0.17
H209 HE209 - HA209 40 1 1/2 - 1 7/16 33 11 45 65 0.23
H210 HE210 HS210 HA210 45 1 3/4 1 5/8 1 11/16 35 12 50 70 0.27
H211 HE211 HS211 HA211 50 2 1 7/8 1 15/16 37 12 55 75 0.31
H212 HE212 HS212 - 55 2 1/4 2 1/8 - 38 13 60 80 0.35
H213 HE213 HS213 HA213 60 2 1/4 2 3/8 2 3/16 40 14 65 85 0.40
H214 - - - 60 - - - 41 14 70 92 0.55
H215 HE215 HS215 HA215 65 2 1/2 2 5/8 2 7/16 43 15 75 98 0.71
H216 HE216 - HA216 70 2 3/4 - 2 11/16 46 17 80 105 0.88
H217 HE217 - HA217 75 3 - 2 15/16 50 18 85 110 1.02
H218 HE218 - HA218 80 3 1/4 - 3 3/16 52 18 90 120 1.18
H219 HE219 - - 85 3 1/4 - - 55 19 95 125 1.37
H220 HE220 - HA220 90 3 1/2 - 3 7/16 58 20 100 130 1.49
H221 HE221 - - 95 - - - 60 20 105 140 1.70
H222 HE222 - - 100 4 - - 63 21 110 145 1.93


               Unit No                     Dimensions Weight(Kg)
H HE HS HA d1 B1 mm B2 mm d1 mm d2 mm
H mm HE in HS in HA in
H304 - HS304 - 17 - 5/8 - 28 7 20 32 0.05
H305 HE305 - - 20 3/4 - - 29 8 25 38 0.08
H306 HE306 HS306 HA306 25 1 7/8 15/16 31 8 30 45 0.11
H307 HE307 HS307 HA307 30 1 1/4 1 1/8 1 3/16 35 9 35 52 0.14
H308 HE308 HS308 - 35 1 1/4 1 3/8 - 36 10 40 58 0.19
H309 HE309 - HA309 40 1 1/2 - 1 7/16 39 11 45 65 0.25
H310 HE310 HS310 HA310 45 1 3/4 1 5/8 1 11/16 42 12 50 70 0.30
H311 HE311 HS311 HA311 50 2 1 7/8 1 15/16 45 12 55 75 0.35
H312 HE312 - HA312 55 2 1/4 2 1/8 - 47 13 60 80 0.39
H313 HE313 HS313 HA313 60 2 1/4 2 3/8 2 3/16 50 14 65 85 0.46
H314 - - - 60 - - - 52 14 70 92 0.72
H315 HE315 HS315 HA315 65 2 1/2 2 5/8 2 7/16 55 15 75 98 0.83
H316 HE316 - HA316 70 2 3/4 - 2 11/16 59 17 80 105 1.00
H317 HE317 - HA317 75 3 - 2 15/16 63 18 85 110 1.18
H318 HE318 - HA318 80 3 1/4 - 3 3/16 65 18 90 120 1.37
H319 HE319 - - 85 3 1/4 - - 68 19 95 125 1.56
H320 HE320 - HA320 90 3 1/2 - 3 7/16 71 20 100 130 1.69
H321 HE321 - - 95 - - - 74 20 105 140 1.95
H322 HE322 - - 100 4 - - 77 21 110 145 2.18
