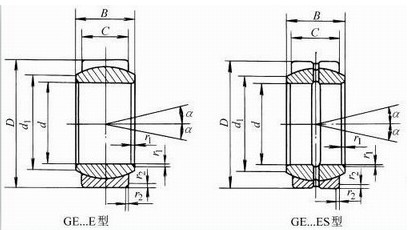

GEG..E type GEG....ES type
Bearing No. |
Dimensions(mm) |
Basic load ratings |
α°
≈ |
(Kg) |
Equivalente
SKF:GE….E/ES INA:GE...ZO
GE…ES-2RS GE…DO-2RS |
d |
D |
B |
C |
d1min |
Dynamic (KN) |
Static? (KN) |
Weight |
GE4E |
|
|
4 |
12 |
5 |
3 |
6 |
12 |
10 |
16 |
0.0033 |
GE5E |
|
|
5 |
14 |
6 |
4 |
7 |
3.4 |
17 |
13 |
0.0038 |
GE6E |
|
|
6 |
14 |
6 |
4 |
8 |
3.4 |
17 |
13 |
0.0042 |
GE8E |
|
|
8 |
16 |
8 |
5 |
10 |
5.5 |
27 |
15 |
0.0075 |
GE10E |
|
|
10 |
19 |
9 |
6 |
13 |
8.1 |
40 |
12 |
0.011 |
GE12E |
|
|
12 |
22 |
10 |
7 |
15 |
10 |
54 |
10 |
0.015 |
GE15ES |
GE15ES-2RS |
|
15 |
26 |
12 |
9 |
18 |
17 |
85 |
8 |
0.027 |
GE17ES |
GE17ES-2RS |
|
17 |
30 |
14 |
10 |
20 |
21 |
106 |
12 |
0.041 |
GE20ES |
GE20ES-2RS |
|
20 |
35 |
16 |
12 |
24 |
30 |
146 |
9 |
0.066 |
GE25ES |
GE25ES-2RS |
|
25 |
42 |
20 |
16 |
29 |
48 |
240 |
7 |
0.119 |
GE30ES |
GE30ES-2RS |
|
30 |
47 |
22 |
18 |
34 |
62 |
310 |
6 |
0.153 |
GE35ES |
GE35ES-2RS |
|
35 |
55 |
25 |
20 |
39 |
80 |
400 |
6 |
0.233 |
GE40ES |
GE40ES-2RS |
|
40 |
62 |
28 |
22 |
45 |
100 |
500 |
7 |
0.306 |
GE45ES |
GE45ES-2RS |
|
45 |
68 |
32 |
25 |
50 |
127 |
640 |
7 |
0.427 |
GE50ES |
GE50ES-2RS |
|
50 |
75 |
35 |
28 |
55 |
156 |
780 |
6 |
0.546 |
GE60ES |
GE60ES-2RS |
|
60 |
90 |
44 |
38 |
66 |
245 |
1220 |
6 |
1.045 |
GE70ES |
GE70ES-2RS |
|
70 |
105 |
49 |
40 |
77 |
315 |
1560 |
6 |
1.55 |
GE80ES |
GE80ES-2RS |
|
80 |
120 |
55 |
45 |
88 |
400 |
2000 |
6 |
2.31 |
GE90ES |
GE90ES-2RS |
|
90 |
130 |
60 |
50 |
98 |
490 |
2450 |
5 |
2.75 |
GE100ES |
GE100ES-2RS |
|
100 |
150 |
70 |
55 |
109 |
610 |
3050 |
7 |
40.45 |
GE110ES |
GE110ES-2RS |
|
110 |
160 |
70 |
55 |
120 |
655 |
3250 |
6 |
4.82 |
GE120ES |
GE120ES-2RS |
|
120 |
180 |
85 |
70 |
130 |
950 |
4750 |
6 |
8.05 |
GE140ES |
GE140ES-2RS |
|
140 |
210 |
90 |
70 |
150 |
1080 |
5400 |
7 |
11.02 |
GE160ES |
GE160ES-2RS |
|
160 |
230 |
105 |
80 |
170 |
1370 |
6800 |
8 |
14.01 |
GE180ES |
GE180ES-2RS |
GE180DS |
180 |
260 |
105 |
80 |
192 |
1530 |
7650 |
6 |
18.65 |
GE200ES |
GE200ES-2RS |
GE200DS |
200 |
290 |
130 |
100 |
212 |
2120 |
10600 |
7 |
28.03 |
Bearing No. |
Dimensions(mm) |
Basic load ratings |
α°
≈ |
(Kg) |
Equivalente
SKF:GE….E/ES INA:GE...ZO
GE…ES-2RS GE…DO-2RS |
d |
D |
B |
C |
d1min |
Dynamic (KN) |
Static? (KN) |
Weight |
GEG4E |
|
|
4 |
14 |
7 |
4 |
7 |
3.4 |
17 |
20 |
0.0045 |
GEG5E |
|
|
5 |
16 |
9 |
5 |
8 |
5.5 |
27 |
21 |
0.0066 |
GEG6E |
|
|
6 |
16 |
9 |
5 |
9 |
5.5 |
27 |
21 |
0.0081 |
GEG8E |
|
|
8 |
19 |
11 |
6 |
11 |
8.1 |
40 |
21 |
0.014 |
GEG10E |
|
|
10 |
22 |
12 |
7 |
13 |
10 |
54 |
18 |
0.021 |
GEG12E |
|
|
12 |
26 |
15 |
9 |
16 |
17 |
85 |
18 |
0.033 |
GEG15ES |
GEG15ES-2RS |
|
15 |
30 |
16 |
10 |
19 |
21 |
106 |
16 |
0.049 |
GEG17ES |
GEG17ES-2RS |
|
17 |
35 |
20 |
12 |
21 |
30 |
146 |
19 |
0.083 |
GEG20ES |
GEG20ES-2RS |
|
20 |
42 |
25 |
16 |
24 |
48 |
240 |
17 |
0.153 |
GEG25ES |
GEG25ES-2RS |
|
25 |
47 |
28 |
18 |
29 |
62 |
310 |
17 |
0.203 |
GEG30ES |
GEG30ES-2RS |
|
30 |
55 |
32 |
20 |
34 |
80 |
400 |
17 |
0.304 |
GEG35ES |
GEG35ES-2RS |
|
35 |
62 |
35 |
22 |
39 |
100 |
500 |
16 |
0.408 |
GEG40ES |
GEG40ES-2RS |
|
40 |
68 |
40 |
25 |
44 |
127 |
640 |
17 |
0.542 |
GEG45ES |
GEG45ES-2RS |
|
45 |
75 |
43 |
28 |
50 |
156 |
780 |
15 |
0.713 |
GEG50ES |
GEG50ES-2RS |
|
50 |
90 |
56 |
36 |
57 |
245 |
1220 |
17 |
1.44 |
GEG60ES |
GEG60ES-2RS |
|
60 |
102 |
63 |
40 |
67 |
315 |
1560 |
17 |
1.6 |
GEG70ES |
GEG70ES-2RS |
|
70 |
120 |
70 |
45 |
77 |
400 |
2000 |
16 |
3.01 |
GEG80ES |
GEG80ES-2RS |
|
80 |
130 |
75 |
50 |
87 |
490 |
2450 |
14 |
6.4 |
GEG90ES |
GEG90ES-2RS |
|
90 |
150 |
85 |
55 |
98 |
610 |
3050 |
15 |
5.22 |
GEG100ES |
GEG100ES-2RS |
|
100 |
160 |
85 |
55 |
110 |
655 |
3250 |
14 |
6.05 |
GEG110ES |
GEG110ES-2RS |
|
110 |
180 |
100 |
70 |
122 |
950 |
4750 |
12 |
9.68 |
GEG120ES |
GEG120ES-2RS |
|
120 |
210 |
115 |
70 |
132 |
1080 |
5400 |
16 |
14.72 |
GEG140ES |
GEG140ES-2RS |
|
140 |
230 |
130 |
80 |
151 |
1370 |
6800 |
16 |
19.01 |
GEG160ES |
GEG160ES-2RS |
GEG160DS |
160 |
260 |
135 |
80 |
176 |
1530 |
7650 |
16 |
20.02 |
GEG180ES |
GEG180ES-2RS |
GEG180DS |
180 |
290 |
155 |
100 |
196 |
2120 |
10600 |
14 |
32.21 |
GEG200ES |
GEG200ES-2RS |
GEG200DS |
200 |
320 |
165 |
100 |
220 |
2320 |
11600 |
15 |
45.28 |
|
