Farm Parts -- Hubs, Spindles & Wheel Bearing Kit |
 |
| Product Name:

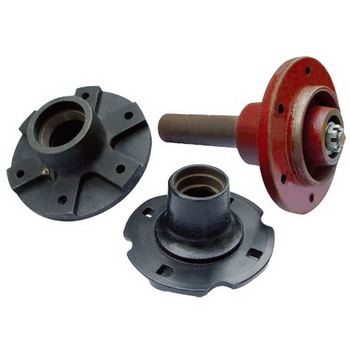

Hubs |
| IMPLEMENT & UTILITY HUBS |
| MODEL NUMBER OR |
OEM |
BOLT |
TYPE |
| PART # |
MFG # |
APPLICATION(S) |
NUMBER |
281011
WILTON- |
W25-5, F&H
104683
AP255 |
AMCO (SOME APPLICATIONS)
KBH WATER WAGON
KBH FERTILIZER APPLICATION |
AMCO
KBH
KBH |
#
#
# |
5-BOLT |
281021
WILTON- |
W25-5, F&H
105218
AP256 |
BURCH 209 DISC
#45 KEWANEE RUNNING GEAR
M&W RED WAGON
W&A BEDDER |
BURCH
KEWANE
M & W
W & A |
B7726
X-8205
0530178
# |
6-BOLT |
281031
WILTON- |
W30-6, F&H
106749
AP306 |
FORREST CITY DO-ALL
KBH FERTILIZER APPLICATORS
KBH TRAILERS |
F.C.
KBH
KBH |
9030-9054
#
# |
6-BOLT |
281041
WILTON- |
W35-6, F&H
106164
AP356 |
|
|
|
6-BOLT |
280501
WILTON- |
Q633
AP633 |
CASE
BLUE JET
DMI COULTERS
GLENCOE R/C CULTIVATOR |
CASE
BLUE JET
DMI
GLENCOE |
T26242
#
#
P1427 |
4-HOLE |
280611
WILTON- |
Q669
AP669 |
TYE GRAIN DRILL (WITH MACHINE WORK) |
TYE |
550-107 |
4-HOLE |
280591
WILTON- |
Q670
F&H 106724
AP670 |
AMCO DISC (WING)
EVERSMAN LAND PLANE
GRAHAM CHISEL PLOW
HAWK BUILT 4-TON SPREADER |
AMCO
EVERSMAN
GRAHAM
HAWK |
#
#
Q6320
# |
6-HOLE |
280511
WILTON- |
Q709
AP709 |
GRAHAM CHIESEL PLOW
PIPER DISC |
GRAHAM PIPER |
Q6305
# |
6-HOLE |
280521
WILTON- |
Q719
AP719 |
AMCO DISC
HINNIKER FIELD CULTIVATOR
W&A |
AMCO
HINNIKER
W & A |
#
#
# |
5-BOLT |
280581
WILTON- |
Q803
AP803H |
AMCO DISC 325M, FRM |
|
|
6-HOLE |
280551
WILTON- |
Q888
AP888 |
A C FIELD CULTIVATOR
CRUSTBUSTER CHISEL PLOW
MANY APPLICATIONS
GLENCOE FIELD CULTIVATOR
KENT FIELD CUTIVATOR
NOBLE
TYE GRAIN DRILL
DISC & FIELD CULTIVATOR |
AC
CRUSTBUSTER
CASE IH
GLENCOE
KENT
NOBLE
TYE |
586899
5505152
T54261
P1482
FC0359
#
550-125P |
6-HOLE |
| SPECIAL APPLICATION |
| PART # |
MODEL # OR APPLICATION(S) |
REPLACES |
OEM # |
BOLT TYPE |
| P465493 |
48, 470, 475, 480, 485, 490, 500, 501, & 610 DISCS |
CASE-IH |
465493R1 |
6-HOLE |
| P478375 |
CASE-IH TRANSPORT WHEEL. 470-501 (WT.,5.57) |
CASE-IH |
478375R1 |
|
| P606468 |
H.D. 496, 596, 770, 780 & 3900 DISC |
CASE-IH |
606468R21 |
6-HOLE |
| P1978726 |
SPINDLE, 770,780,3900, & LATE 496, TRANSPORT WHEEL |
CASE-IH |
1978726C1 |
|
| P283291A |
HUB WITH BEARING AN281813 FITS 1560, 1860, 1590, & 1900CCS (WT.,4.60) |
JOHN DEERE |
AN281856 N283291 |
4-HOLE |
| P281813 |
BEARING ONLY 283291A BEARING, JD DRILL, AIR SEEDER COULTER HUB, AN281813, MODELS 1560, 1590, 1690, 1860, 1895, 1990 |
JOHN DEERE |
AN281813 |
|
| P213544 |
HUB W/CUPS, SEEDER BLADE, 750, COULTER HUB, MODELS 1560, 1590, 1690, 1860, 1895, 1990 AND 1850 DRILLS. |
JOHN DEERE |
AN213544 |
4-HOLE |
| P183318K |
HUB KIT, JD 630, 621, 635, 637, 620, 640, 650, 500 RIPPER, 500 JD MULCH FINISHERS, REP JD# AN183318 |
JOHN DEERE |
AN183318 |
|
| P183318 |
JHON DEERE 630 DISC, 1000 & 1050 FIELD CULTIVATOR |
JOHN DEERE |
AN183318 |
6-HOLE |
| P630BK |
BEARING KIT FOR P183318 HUB, MODELS 620, 621, 627, 630, 635, 640, 670, WINGS ONLY 637, 650 |
JOHN DEERE |
N/A |
|
| P630S |
SPINDLE,630 TRANSPORT HUB, WELD REQUIRED FOR AN183318 JD |
JOHN DEERE |
N/A |
|
| P2900 |
KBH FERTILIZER APPLICATOR
ADAM
YETTER FERTILIZER APPLICATOR |
KBH
ADAM
YETTER |
#
#
2900-102 |
4-HOLE |
| P2900K |
BEARING KIT P2900 BRG |
YETTER |
|
|
| P633 |
HUB, DMI W/CUPS FERTILIZER APPLICATORS, Q633 |
TYE BINGHAM |
627-142 564-019 |
4-HOLE |
| P280700 |
SPINDLE, DMI, USE W/P633 HUB |
DMI |
|
|
| P633-01 |
BEARING KIT FOR P633 |
TYE BINGHAM DMI |
|
|
| Q888 |
HUB W/CUPS, REPLACES 280551 |
MANY APPLICATIONS |
|
6-HOLE |
| Q888-0 |
HUB & SPINDLE ASSY. COMPLETE REPLACES 28311 |
MANY APPLICATIONS |
|
6-HOLE |
| HUB COMPONENT LIST |
| HUB |
SPINDLE |
I/CUP |
I/BRG |
O/CUP |
O/BRG |
SEAL |
DUST CAP |
BOLT STUD |
NUT |
| 280501 |
280700 |
LM67010 |
LM67048 |
LM11910 |
LM11949 |
906296 |
909911 |
943549 |
|
| 280511 |
280710 |
LM48510 |
LM48548 |
LM67010 |
LM67048 |
906283 |
909905 |
943549 |
|
| 280521 |
280710 |
LM48510 |
LM48548 |
LM67010 |
LM67048 |
906283 |
909905 |
913576 |
912919 |
| 280551 |
280743 |
JL69310 |
JL69349 |
LM67010 |
LM67048 |
906284 |
909905 |
943549 |
|
| 280581 |
280731 |
25520 |
25590 |
25821 |
25877 |
906285 |
909982 |
943549 |
|
| 280591 |
280964 |
332 |
342A |
14276 |
14137A |
906482 |
909928 |
943549 |
|
| 281011 |
281210 |
LM48510 |
LM48548 |
LM67010 |
LM67048 |
906295 |
909905 |
913576 |
912919 |
| 281531 |
281220 |
LM29710 |
LM29749 |
LM67010 |
LM67048 |
906295 |
909905 |
913576 |
912919 |
| 281041 |
281230 |
LM501310 |
LM501349 |
LM67010 |
LM67048 |
906294 |
909905 |
913538 |
|
| SPINDLE COMPONENT LIST |
| SPINDLE PART# |
FOR HUB |
A |
B |
C |
D |
E |
SPINDLE NUT |
SPINDLE WASHER |
| 280700 |
AP633
AP709 |
1.63 |
9.31 |
4.72 |
1.50 |
3/4"-16 |
912953 |
913608 |
| 280710 |
AP719
AP709 |
1.75 |
11.50 |
7.12 |
1.50 |
7/8"-14 |
912952 |
913607 |
| 280743 |
AP888 |
1.75 |
12.50 |
9.56 |
1.62 |
7/8"-14 |
912952 |
913607 |
| 280722 |
AP888 |
2.00 |
14.00 |
9.56 |
1.62 |
7/8"-14 |
912952 |
913607 |
| 280731 |
AP803H |
2.12 |
15.50 |
9.41 |
2.00 |
7/8"-14 |
912952 |
913607 |
| 280964 |
AP670 |
2.00 |
11.09 |
6.50 |
|
7/8"-14 |
912952 |
913607 |
| 281210 |
AP255
AP256 |
1.75 |
12.31 |
8.47 |
1.375 |
3/4"-16 |
912953 |
913616 |
| 281220 |
AP2306 |
1.75 |
9.88 |
5.41 |
1.499 |
3/4"-16 |
912953 |
913616 |
| 281230 |
AP356 |
2.00 |
11.00 |
5.81 |
1.625 |
3/4"-16 |
912953 |
913616 |
| 280771 |
AP669 |
1.63 |
10.00 |
5.34 |
1.5 |
5/8"-18 |
912954 |
913615 |
| GREASE SEAL INTERCHANGE |
| PART# |
C/R# |
NATIONAL# |
WILTON |
NOK# |
HUB# |
REFERENCE # |
| 15190 |
15190 |
41461S |
906283 |
AF8495EO |
280511, 280521 |
Q709, Q719 |
| 16289 |
16289 |
219099 |
906284 |
AF8496EO |
280551, 287808, FC6029 |
Q888, Q810/777 |
| 20148 |
20148 |
|
906285 |
280581 |
|
Q803 |
| 16069 |
16069 |
202017 |
906293 |
AF2458EO |
|
2900-1002 YETTER |
| 17617 |
17617 |
204038 |
906295 |
AF2597EO |
281011, 281021, 281031 |
W25-5, W25-6, W30-6 |
| 14975 |
14975 |
204013 |
906296 |
AF2285EO |
280501, 280541, 280611 |
Q633, Q736, Q669 |
| 22392 |
22392 |
473473 |
906297 |
AF8216EO |
|
|
| 15174 |
15174 |
200861 |
906476 |
280621 |
Q809 |
|
| 22870 |
22870 |
2040035 |
906487 |
AF8063EO |
280591 |
Q670 | |
