恢瞳兆各:  廿概邦叡已覚

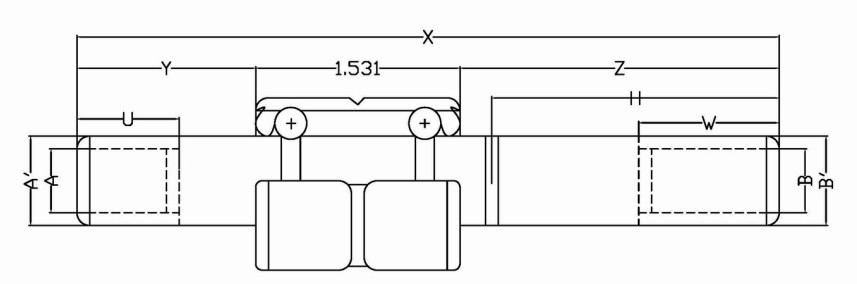

BEARING NO. SHAFTO.D (inch) OS.SHAFTO.D (inch) X Y Z H U W WEIGHT (kg)
STANDXARD STEP STANDXARD STEP
OURS FAG NSK A B A' B' A B A' B'
WIB 163083 W2325 885165 .6267 .6267     .6287 .6287     3.250 .156 1.563       0.206
WIB 1630128B W3503-5 885166K .6275 .6275     .6295 .6295     5.031 1.219 2.281 2.031     0.277
WIB 1630112 W2439 885167 .6267 .6267     .6287 .6287     4.390 .937 1.922 1.672     0.251
WIB 1630112A W2440-4 885167D .6267 .6267     .6287 .6287     4.400 1.150 1.719 1.530     0.252
WIB 1630112 W4841-6 8851681D .6265 .6265     .6265 .6265     4.813 1.582 1.700 1.507     0.269
WIB 1630122B W2481-1 885168C .6267 .6267     .6287 .6287     4.813 1.125 2.517 1.937     0.268
WIB 1630122C W3481-1 885167D .6275 .6275     .6275 .6275     4.813 1.125 2.517 1.937     0.269
WIB 1630129 W2507 885169 .6267 .6267     .6287 .6287     5.078 1.250 2.297 2.109     0.278
WIB 163069 W2272 885198 .6267 .6267     .6287 .6287     2.720 .160 1.029       0.185
WIB 163061 W 885198AF .6267 .6267     .6287 .6287     2.400 .156 .713       0.172
WIB 1630122A W2478-1 885238 .6267 .6267     .6287 .6287     4.788 1.237 2.020 1.710     0.267
WIB 1630124A W2489-5 885245 .6267 .6267   .4724 .6287 .6287     4.898 1.570 1.797 1.611     0.272
WIB 1630141 W255 885248 .6267 .6267   .4724 .6287 .6287     5.551 1.926 2.094 1.735     0.298
WIB 1630110B W2432 885305 .6267 .6267   .4724 .6287 .6287     4.339 .935 1.872       0.249
WIB 163098 W2385 885307 .6267 .6267     .6287 .6287     3.858 .670 1.657       0.230
WIB 163088 WS2346-1 885319+ .6267 .6267     .6287 .6287     3.464 .709 1.693       0.193
WIB 1030102 W2401-3 885321 .6267 .6267     .6287 .6287     3.996 .689 1.776       0.236
WIB 1630124B W2488S 885326 .6267 .6267     .6287 .6287   .4744 4.882 1.654 1.697     1.594 0.244
WIB1630112B W2440-5S 885327 .6267 .6267   .4724 .6287 .6287   .4744 4.409 1.181 1.697     1.594 0.225
WIB 1630101   885328 .6267 .6267 .5512 .4724 .6287 .6287 .5532 .4744 3.976 .945 1.500   .858 1.382 0.203
WIB 163093 W2366 885330 .6267 .6267   .4724 .6287 .6287     3.661 .728 1.402       0.222
WIB 1630110 W2434 885332 .6267 .6267   .4724 .6287 .6287     4.346 .841 .974 1.614     0.250
WIB 1630116   885337A .6267 .6267     .6287 .6287     4.547 .807 2.209       0.258
WIB 163085 WS2332-1 885342+ .6267 .6267     .6287 .6287     3.327 .679 1.585 1.467     0.188
WIB 163099A   885351 .6267 .6267     .6287 .6287   .4744 3.917 .650 1.736     1.684 0.203
WIB 1630115   885354 .6267 .6267   .5015 .6287 .6287     4.528 .650 2.347     1.594 0.229
WIB 1630100   885355 .6267 .6267     .6287 .6287     3.937 .945 1.461     1.381 0.209
WIB 1630104A   885356 .6267 .6267 .4727 .4739 .6287 .6287   .4724 4.075 .770 1.774     1.654 0.210
WIB 1630113   885357 .6267 .6267     .6287 .6287     4.449 1.378 1.540       0.253
WIB 1630104B   885358 .6267 .6267     .6287 .6287     4.075 1.016 1.528       0.239
WIB 1630135A W2532 885437S .6267 .6267     .6287 .6287     5.326 2.000 1.795 1.605     0.289
WIB 1630106B W2418S 885439 .6267 .6267 .4727   .6287 .6287   .5035 4.180 .989 1.660     1.470 0.222
WIB 1630141A W2556 885458 .6267 .6267     .6287 .6287     5.561 1.530 2.500 2.310     0.298
WIB 1630101A W2398-1S 885467 .6267 .6267     .6287 .6287 .4747 .5015 3.986 1.140 1.315   .937 1.221 0.201
WIB 163099 W2387S 885474 .6267 .6267     .6287 .6287   .4747 3.875 .885 1.459     1.336 0.208
WIB 1630122D W2481 885476 .6267 .6267     .6287 .6287     4.810 1.334 1.945 1.755     0.268
WIB 163092 W2364S 885477 .6267 .6267     .6287 .6287   .4759 3.461 .989 1.121     1.023 0.204
WIB 1630116A W2455 885495 .6267 .6267     .6287 .6287     4.557 1.057 1.968       0.258
WIB 1630132 W3520-2 885521 .6267 .6267     .6287 .6287     5.202 1.582 2.089 1.901     0.284
WIB 1630110C W2433-2 885524S .6267 .6267   .4724 .6287 .6287     4.330 1.139 1.660 1.439     0.249
WIB 1630101B W2398 885538 .6267 .6267   .4724 .6287 .6287     3.984 1.078 1.375 1.225     0.235
WIB 1630139 W25481 885603 .6267 .6267   .4724 .6287 .6287     5.485 1.380 2.547 2.214     0.295
WIB 1630133 W3522-1 885611 .6267 .6267   .4724 .6287 .6287     5.222 1.172 2.519 2.330     0.284
WIB 1630154 W3607-1 885613 .6267 .6267     .6287 .6287     6.072 1.172 3.369 3.119     0.319
WIB 1630146 W2575-2 885694S .6267 .6267   .4724 .6287 .6287     5.756 2.430 1.795 1.605     0.306
WIB 1630106D W2407-1S BWF 30-6A-A-R .6267 .6267 .4724 .4724 .6287 .6287 .4744 .4744 4.075 .849 1.695   .768 1.594 0.195
WIB 1630106C   BWF 30-15R .6267 .6267   .4724 .6287 .6287     4.454 .925 1.697     1.594 0.212
WIB 163093C W2366 BWF 30-56CR .6267 .6267     .6287 .6287     3.661 .728 1.402     1.284 0.198
WIB 163093A   BWF 30-137-A-RR6 .6267 .6267   .5908 .6287 .6287     3.642 .650 1.461     1.358 0.196
      .6267 .6267     .6287 .6287
WIB 163095   BWF30-173R .6267 .6267     .6287 .6287     3.724 .756 1.437     1.319 0.200
WIB 1630103   BWF 30-174XR .6267 .6267     .6287 .6287     4.055 .650 1.874     1.693 0.203
WIB 163093B   BWF 30-181-A-R .6267 .6267 .4724   .6287 .6287 .4724   3.642 .650 1.461   .571 1.358 0.185
BALL-BALL:0.6693"SHAFT X 1.4173"(36mm)0.D.
WIB 173691   BWF 36-1 .6693 .6693     .6716 .6716     3.571 .552 1.488     1.342 0.295
